Miele DAW1620 EDST

Wall Mount Hood

Type Wall Mounted
Maximum Performance (m3/h) 640 m3/h
Noice Level (dB) 62 dB(A)
Dimensions (cm) 60 cm
Colour Inox

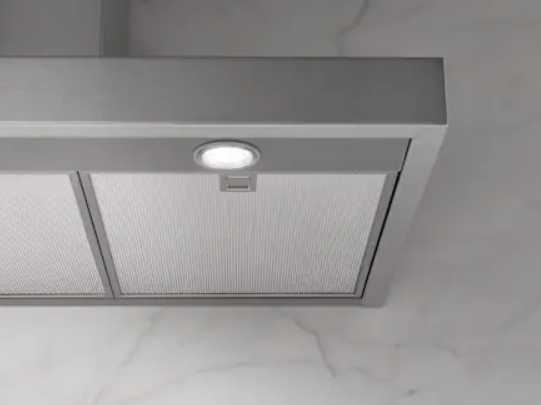

LED Light

LED lighting brings your creations to the fore and ensures you absolute and detailed control from start to finish.

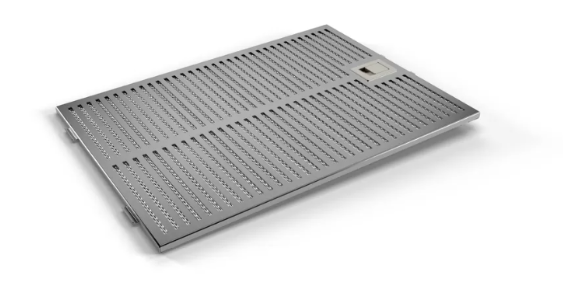

Easy to use and effective against grease

MIELE DAW 1620 Active EDST is equipped with a 10-layer stainless steel grease filter. The upper layers and the filter frame are made of high quality stainless steel. “Grease filters are easy to clean in the dishwasher and do not discolour”, while maintaining their quality appearance for a long time.

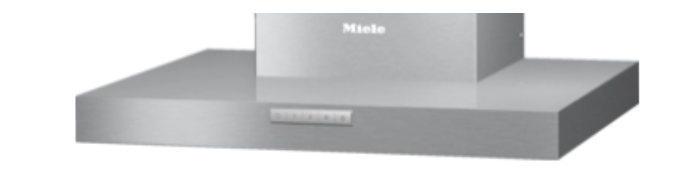

Easy use

The control panel consists of push buttons, corresponding to each function. They are numbered, so you can easily choose the desired absorption level.

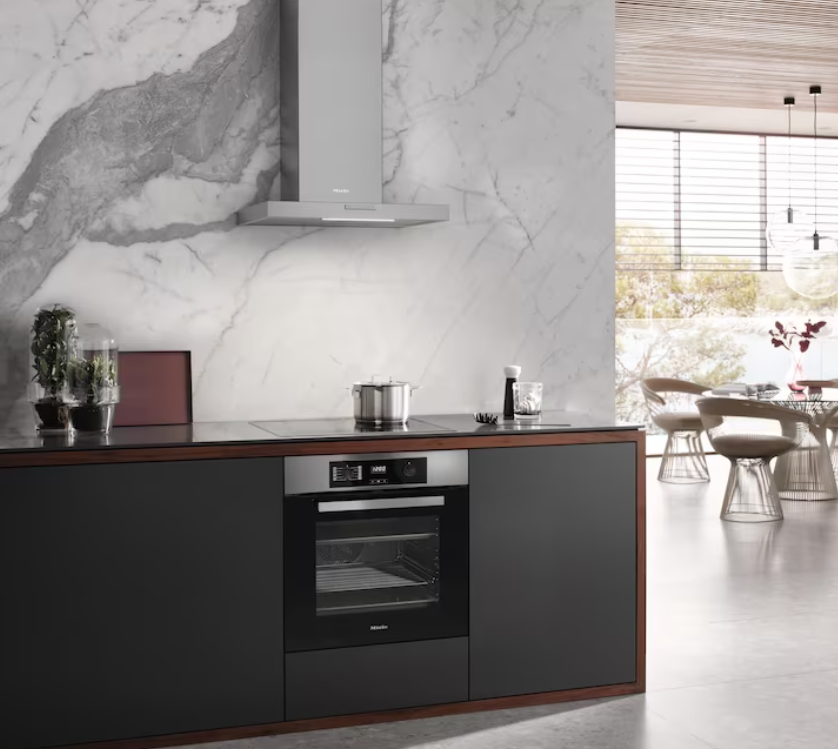

Powerful and quiet

Radial turbines on both sides ensure quiet absorption and extraction.

Extended Specifications

Construction type and design
Appliance colour : Stainless steel
Construction type
Wall mounted cooker hood
Operating modes
Type of air guide: Can be retrofitted
Active charcoal filter (order separately): DKFS 36-P
User convenience
Booster levels 1
Efficiency and sustainability
Annual energy consumption in kWh/year: 49.9
Energy efficiency class (A+++ – D):A
Grease filtering efficiency class: B
Fluid dynamic efficiency class: A
Lighting efficiency class: A
Filter system
Number of dishwasher-safe metal grease filters: 2
Lighting
Number x W: 1 x 3,2 W
Light intensity in Lx: 390 lx
Colour temperature in K: 3500 Kelvin
Fan
Dual-action fan
AC motor
Exhaust air
Air throughput in Level 1 (m³/h) according to EN 61591: 250
Air throughput in Level 2 (m³/h) according to EN 61591: 395
Air throughput in Booster level 1 (m³/h) according to EN 61591: 640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 52.0
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 62.0
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3: 71.0
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 38.0
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 48.0
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 57.0
Recirculation
Air throughput in Level 1 (m³/h) according to EN 61591: 235
Air throughput in Level 2 (m³/h) according to EN 61591: 390
Air throughput in Booster level 1 (m³/h) according to EN 61591: 620
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 53.0

Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 64.0
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3: 74.0
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 39.0
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 50.0
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 60.0
Technical data
Overall hood height for extraction mode and external in mm: 673–993
Overall height for recirculation mode cooker hoods in mm: 803–1123
Canopy width in mm: 598
Overall height for vented and external in in. (mm): 673
Overall height for extraction mode and external mode cooker hoods in mm: 993
Canopy height in mm: 50
Overall height for recirculation in in. (mm): 803
Canopy depth in mm: 500
Overall height for recirculation mode cooker hoods in mm: 1123
Net weight in kg: 13.4
Length of supply lead in m: 1.4
Minimum height above electric hobs in mm: 450
Number of phases: 1
Total rated load in kW: 0.24
Voltage in V: 230
Fuse rating in A: 10
Frequency in Hz\: 50
