Gentle Breeze Innovation
Up to 1,422 micro-holes are aligned along S-shaped vanes to spread airflow more broadly and gently, giving a draft-free, premium comfort experience.
TCL TAC-12CHSD/UG11V3
TCL TAC-12CHSD/UG11V3
High Wall Inverter 12000BTU
Type: High Wall
Cooling Capacity: 12000 Btu
Energy Class Cooling: Α+++
Energy Class Heating: A+++
Ionic Function: No
| Brand | TCL |
| Cooling Energy Class | A+++ |
| Heating Energy Class | A+++ |
| BTU/h | 12000 |
| Ionic Function | No |
| Price | €565.00 €395.00 |
| You Save | €170.00 |
No description found for this product
At a Glance
12000
BTU/h
3.5 KW
Cooling Capacity
4.5 KW
Heating Capacity
A+++
Energy Class (Cooling)
R32
Refrigerant
Yes
WiFi Connectivity
Inverter Intelligence
TCL's inverter technology pairs peak performance with outstanding energy efficiency, so the split system responds swiftly to guide the room to optimal comfort with ease.
Filtered Air, Conditioned Freshness
A top-mounted filter is designed for optimal dust and pollutant removal, helping keep the air in the room refreshingly clean.
Comfort Where It Matters — "I Feel" Mode
The remote's integrated thermometer senses the surrounding temperature, letting the unit respond automatically for effort-free, optimal comfort.
Smart Control Anywhere
Control the unit from the handheld remote or via smart integrations with the TCL Home App, Amazon Alexa, or Google Assistant. Wi-Fi network, a Google/Amazon account, and a compatible device are required (sold separately); data usage and subscription charges may apply.

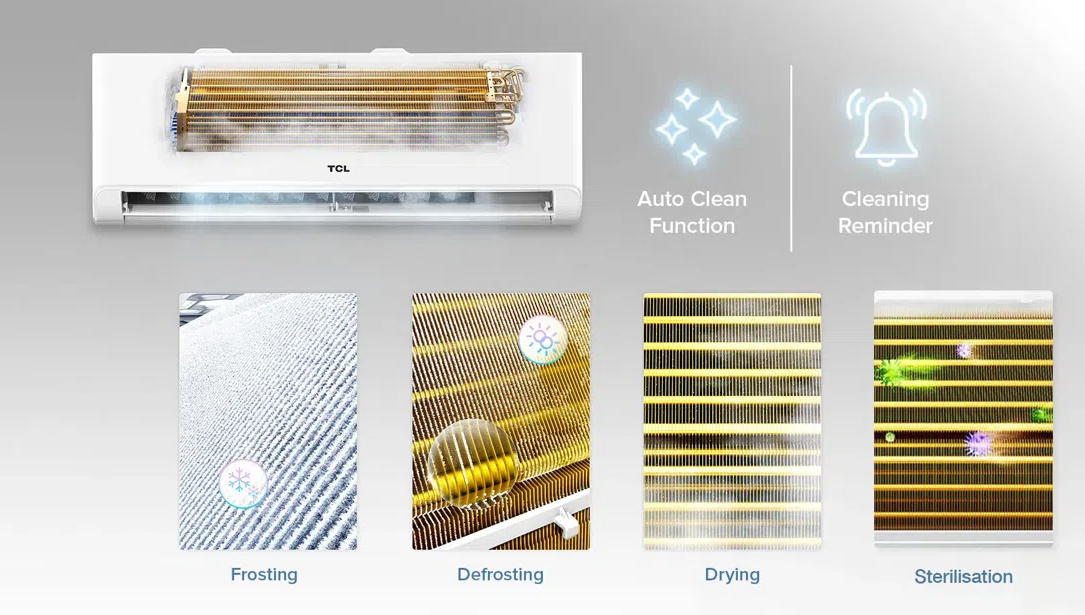

Auto-Clean Helps You Breathe Easy
A 4-step Auto Clean mode uses the air's natural water molecules to sweep away dirt and impurities automatically, and timely filter reminders help keep upkeep to a minimum.
Specifications
Tap a section to expand or collapse.
Basic Information
Brand
TCL
Model
TAC-12CHSD/UG11V3
Type
High Wall Split (Inverter)
Cooling Capacity
12000 BTU/h
Cooling Energy Class
A+++
Heating Energy Class
A+++
Key Features
Capacity
3.5 KW Cooling / 4.5 KW Heating
Works with Google Assistant / Amazon Alexa / TCL Home App
Yes
Gentle Breeze Mode
Yes
24Hr Timer
Yes
Smart Airflow
Yes
Eco Mode
Yes
Air Purification
Yes
5-Fan Speed
Yes
Inverter Technology
Yes
LED Display (On/Off)
Yes
I Feel Function
Yes
Easy Clean Design
Yes
Turbo Function
Yes
Auto-Clean / Clean Reminder
Yes
Sleep Mode
Yes
WiFi Connectivity
Yes
Noise
Indoor Unit
48 dB(A)
Outdoor Unit
60 dB(A)
Rated Value
Cooling Capacity
3.5 KW (1.0–4.0 KW)
Heating Capacity
4.5 KW (1.0–4.6 KW)
Rated Input – Cooling
0.8 KW
Rated Input – Heating
1.07 KW
Moisture Removal
1.4 L/hour
AEER
4.3
ACOP
4.15
Outdoor Operating Temperature Range
-15°C to 52°C
Indoor Operating Temperature Range
16°C to 31°C
Energy Star Rating – Cooling (Hot & Humid)
5.5
Energy Star Rating – Cooling (Mixed)
4.5
Energy Star Rating – Cooling (Cold)
4.5
Energy Star Rating – Heating (Hot & Humid)
2
Energy Star Rating – Heating (Mixed)
2.5
Energy Star Rating – Heating (Cold)
2
Electrical Data
Power Supply
220–240V ~ 50Hz
Rated Current – Cooling
3.6 A
Rated Current – Heating
4.6 A
Max Current (Cooling / Heating)
7.8 A / 8.2 A
Max Input (Cooling / Heating)
1400 W / 1990 W
Standby Power
4 W
Breaker Size
16 A
Fan System
Air Circulation – Cooling
161 L/s
Air Circulation – Heating
172 L/s
Refrigerating System
Compressor Type
Inverter
Refrigerant (Type / Charge)
R32 / 810 g
Piping
Liquid Pipe
Ø 6.35 mm (1/4")
Gas Pipe
Ø 9.52 mm (3/8")
Maximum Piping Length
15 m
Max Height Difference
10 m
Dimensions and Weight
Product Dimensions – Indoor (W x D x H)
820 x 195 x 306 mm
Product Dimensions – Outdoor (W x D x H)
795 x 305 x 549 mm
Net Weight – Indoor
10 kg
Net Weight – Outdoor
26 kg
Carton Dimensions – Indoor (W x D x H)
890 x 265 x 380 mm
Carton Dimensions – Outdoor (W x D x H)
835 x 328 x 575 mm
Gross Weight with Packaging – Indoor
12 kg
Gross Weight with Packaging – Outdoor (without pipe)
29 kg
Specs may vary by region. Always verify with official manufacturer documentation.
