Efficient Cooling and Heating
The WIM-24222.MH delivers 7.04 kW of cooling at an A++ energy label with a SEER of 6.4, plus 7.33 kW of heating with an SCOP of 4.0, running on environmentally friendly R32 refrigerant.

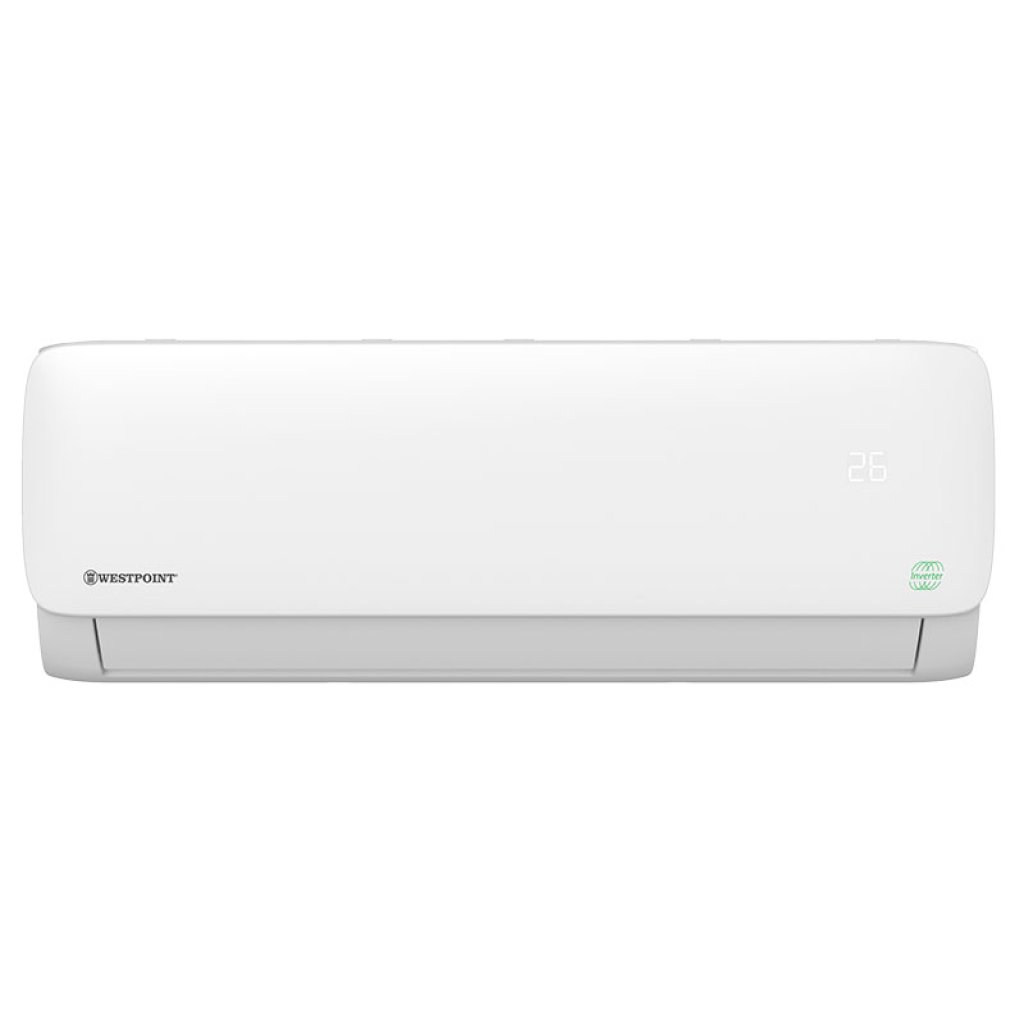

Westpoint WIM-24222.MH
Westpoint WIM-24222.MH
High Wall Inverter 24000BTU
Type: High Wall
Cooling Capacity: 24000 Btu
Energy Class Cooling: Α++
Energy Class Heating: Α++
Ionic Function: No
| Brand | Westpoint |
| Cooling Energy Class | A++ |
| Heating Energy Class | A++ |
| BTU/h | 24000 |
| Ionic Function | No |
| Price | €1, 135.00 €799.00 |
| You Save | €336.00 |
No description found for this product
At a Glance
7.04 kW
Cooling Capacity
7.33 kW
Heating Capacity
A++
Energy Class (Cooling)
7.4
SEER
R32
Refrigerant
High Wall
Type
Gold Fin Protection
Gold Fin treatment on the heat exchanger helps resist corrosion from humidity, salt air, and everyday wear, supporting long-term reliability.
I FEEL Comfort Sensing
The I FEEL function maintains the set temperature at the location of the remote controller rather than at the indoor unit, for more accurate comfort where you actually are.
Self-Cleaning Evaporator
The evaporator cleans itself automatically to reduce the build-up of mould and bacteria, helping keep the airflow fresher between services.
Safety and Flexibility
A built-in leakage detector adds a layer of protection, and the outdoor unit can also be matched with a Multi CMM R32 multi-split system for multi-room installations.
Specifications
Tap a section to expand or collapse.
Basic Information
Brand
Westpoint
Model
WIM-24222.MH
Type
High Wall Split, DC Inverter, Reversible (Cool & Heat Pump)
Remote Control
Yes — included
Wi-Fi
Optional
Performance
Rated Cooling Capacity
24,000 Btu/h (7,038 W); range 7,200–28,000 Btu/h (2,111–8,211 W)
SEER / Energy Class (Cooling)
6.4 / A++
Rated Heating Capacity
25,000 Btu/h (7,331 W); range 5,300–28,000 Btu/h (1,554–8,211 W)
SCOP
4.0
Input Power (Cooling / Heating)
2,402 W / 2,130 W
Running Current (Cooling / Heating)
10.50 A / 9.30 A
Moisture Removal
2.0 l/h
Air Flow (High / Medium / Low)
1,090 / 770 / 610 m³/h
Sound Levels
Indoor Unit Sound Pressure (High/Medium/Low)
46.0 / 37.0 / 21.0 dB(A)
Outdoor Unit Noise Level
60.0 dB(A)
Dimensions & Weight
Indoor Unit Dimensions (H x W x D)
244 x 1,083 x 336 mm
Indoor Unit Net Weight
13.6 kg
Outdoor Unit Dimensions (H x W x D)
495 x 720 x 270 mm
Outdoor Unit Net Weight
43.9 kg
Outdoor Unit Air Flow
3,500 m³/h
Electrical
Power Supply (Indoor / Outdoor)
220-240V, 1-Phase, 50Hz
Indoor Unit Max Current / Max Power Input
19.00 A / 3,700 W
Outdoor Unit Max Current / Max Power Input
19.00 A / 3,700 W
Compressor Type
Rotary
Refrigerant & Pipework
Refrigerant / Charge
R32 / 1,450 g
Liquid Pipe Diameter
9.52 mm (3/8")
Gas Pipe Diameter
15.88 mm (5/8")
Max Pipe Length
50 m
Max Height Difference
25 m
Features
Gold Fins
Yes
I FEEL Function
Yes — maintains set temperature at remote controller location
Leakage Detector
Yes
Self-Cleaning Evaporator
Yes
LED Display
Yes
Timer
24 hours
Multisplit Compatibility
Can match with Multi CMM R32
Specs may vary by region. Always verify with official manufacturer documentation.
