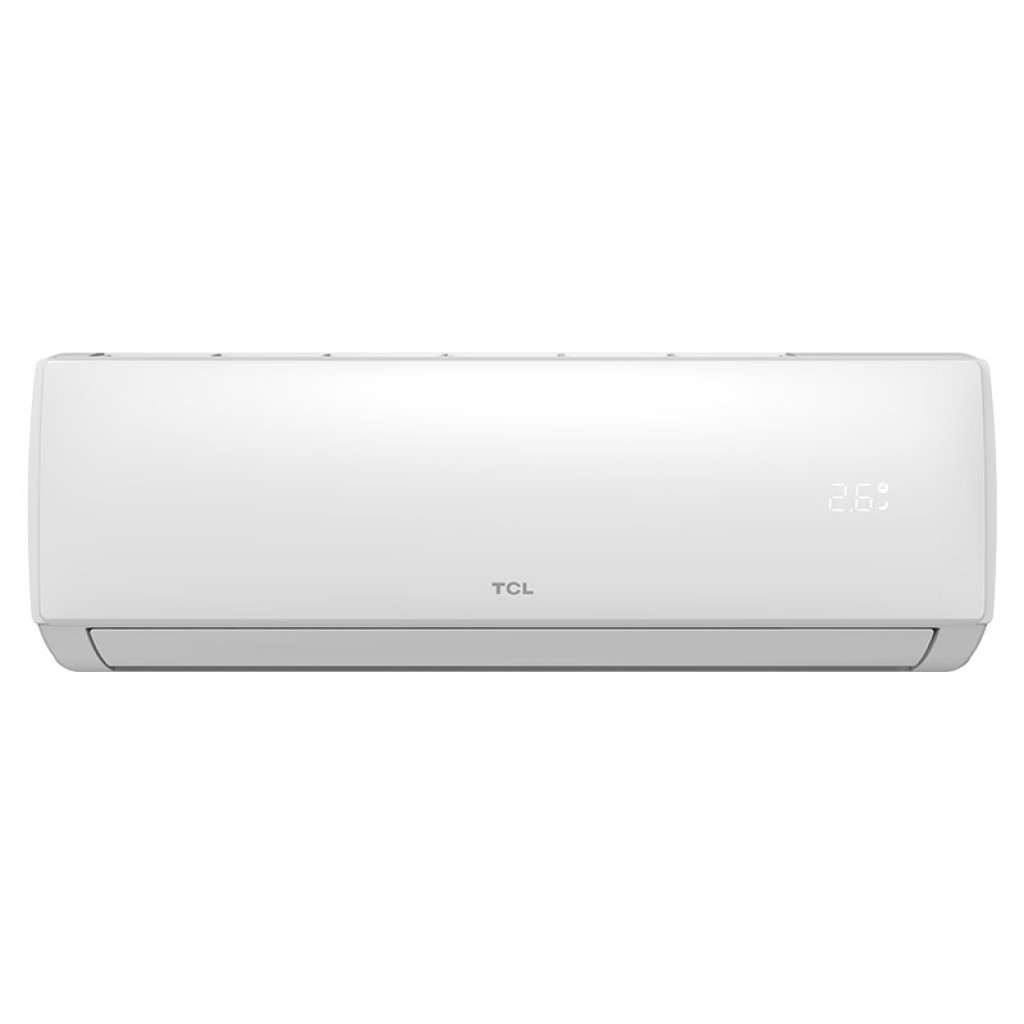

TCL TAC-24CHSD/XA73I

High Wall Inverter 24000BTU

Type: High Wall
Cooling Capacity: 24000 Btu
Energy Class Cooling: Α++
Energy Class Heating: A+++
Ionic Function: No

Alternating Image Text Layout

Turbo Cooling&Heating

Experience fast cooling with coils down to 18°C within 30s and have warm atmosphere with coils up to 40°C within 60s. The inverter compressor runs at extremely high frequency to output maximum capacity and the cooling/warm airflow will blow out as the most wanted when you get back home from scorching/freezing outside.

Low Noise

The lowest noise mode.

4-Step Auto Clean

From frosting, defrosting, drying, to sterilizing. Deep Clean utilizes water molecules in the air to clean away dust, dirt, and other impurities. The auto program is efficient, easy, and a superior way to enjoy cleaner air. Just hit the button.

Extreme Cooling

Stay cool no matter the outside temperature. The air-cooled E-box ensures continuous cooling even at 60°C ambient and 100% cooling capacity output at 50°C ambient.

AI Inverter

Save money and enjoy energy efficiency with Smart Inverter. With up to 60% energy saving, Smart Inverter helps reaching the setting temperature more quickly, and keep temperature stable within ±1℃.

I FEEL

I FEEL removes the temperature gap between setting and feeling via a sensor built into the remote that usually stays close with the user. Relax in space with the exact temperature you set.

Air Conditioner Specifications

General

Rated Cooling Capacity (W): 2600 (940~3300)
Rated Heating Capacity (W): 2610 (940~3360)
Design Load in Cooling (Pdesignc): 2600 W
Seasonal Efficiency (SEER): 6.1 W/W
Energy Class in Cooling: A++
Cooling Efficiency (EER): 3.15 W/W
Heating Efficiency (COP): 3.4 W/W
Design Load in Heating (Pdesignh): 2600 W
Seasonal Efficiency (SCOP): 4.0 W/W
Heating Energy Class: A+
Rated Heating Capacity (-10°C): 1900 W
Spare Heating Capacity (-10°C): 700 W
Annual Energy Consumption (Cooling): 149 kWh
Annual Energy Consumption (Heating): 910 kWh
Application Area: 9–16 m²
Electricity Supply: 220-240V~ / 50Hz / Monophase
Power Supply Connection Location: Outdoor Unit
Voltage Range: 165–265 V
Expansion Valve: Thermostatic
Settable Temperature Range: 16–31 °C

Performance

Working Current - Cooling (A): 4.0 (1.2~8.0)
Working Current - Heating (A): 3.8 (1.2~9.0)
Power Consumption - Cooling (W): 825 (240~1380)
Power Consumption - Heating (W): 767 (240~1552)
Dehumidification Capacity: 1.0 l/h

Sound Levels

Indoor Unit Sound Power (Turbo/Y/M/L/Silent): 50 / 47 / 43 / 35 / 32 dB(A)
Outdoor Unit Sound Power Level: 60 dB(A)
Indoor Unit Sound Pressure (Turbo/H/M/L/Silent): 40 / 37 / 33 / 25 / 22 dB(A)
Outdoor Unit Sound Pressure Level: 50 dB(A)

Air Flow & Fan

Indoor Unit Air Flow (Cooling / Heating): 420 / 420 m³/h
Indoor Unit Fan Type: Cross Flow
Indoor Fan Speed (Cooling) (Turbo/H/M/L/Silent): 1400 / 1300 / 1100 / 1000 / 900 d/d
Indoor Fan Speed (Heating) (Turbo/H/M/L/Silent): 1400 / 1300 / 1100 / 1000 / 900 d/d
Indoor Fan Speed (Dehumidification): 1000 d/d
Outdoor Unit Fan Type: Axial Fan
Outdoor Unit Air Flow: 1700 m³/h
Outdoor Fan Speed (Cooling / Heating): 930 / 930 / 830 / 730 / 630 d/d
