TCL TAC24CHSD/UG11V3A - VoxIN

High Wall Inverter 24000BTU

Type: High Wall
Cooling Capacity: 24000 Btu
Energy Class Cooling: Α+++
Energy Class Heating: A+++
Ionic Function: No

Sale Price: €939.00 €1, 090.00

Add-ons.

Installation Air Conditioner

€130.00

At a Glance

24,000 BTU

Capacity

7.03 / 7.12 kW

Cool / Heat

A+++

Energy Class

SEER 8.5

Efficiency

R32

Refrigerant

27–45 m²

Room Size

Smart App Control

Connect the VoxIN to the TCL HOME app for full remote control from your smartphone. Compatible with Google Home and Amazon Alexa for seamless smart home integration. Smart Learning Mode analyses your usage habits and automatically adjusts settings, while Smart Arrive/Leave Home Mode turns the unit on and off based on your location.

T-AI Energy Saving

T-AI technology continuously monitors room conditions and adjusts compressor frequency to optimise energy use without sacrificing comfort. With a class-leading SEER of 8.5 W/W and A+++ energy rating, the VoxIN delivers up to 37% energy savings compared to standard inverter models. Annual cooling energy consumption is just 289 kWh/year.

Gentle Breeze

18 Advanced blades, designed with micro-holes, transform cold drafts into a smooth laminar flow, ensuring an unparalleled cooling experience. *compatible with 18-24K models.

30s Fast Cooling

The efficient inverter compressor cools the room rapidly and stably, while also being energy saving.

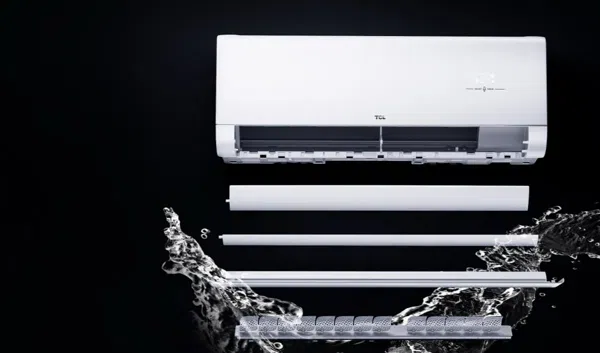

56°C Self-Cleaning

The VoxIN's automatic self-cleaning cycle raises the evaporator temperature to 56°C, moving through dewing, frosting, defrosting and drying stages to eliminate bacteria and mould. The outdoor unit also features Reverse Clean Technology that removes dust and debris from the condenser, keeping the system running efficiently and extending its lifespan.

Electricity Consumption Monitoring

The TCL HOME App provides users with a real time chart of their electricity consumption, enabling them to monitor and optimise their AC usage.

Specifications

Tap a section to expand or collapse.

Basic Information

Article Number

TAC-24CHSD/UG11V3A

Type

High Wall Inverter Split

Capacity

24,000 BTU/h

Colour

White

Application Area

27–45 m²

Operation Type

Heating Pump (Reverse Cycle)

Control Type

Remote Controller

Performance & Efficiency

Declared Cooling Capacity

7,030 W (1,830–7,420 W)

Declared Heating Capacity

7,120 W (1,850–7,960 W)

Pdesignc

7,000 W

SEER

8.5 W/W

EER

3.70 W/W

COP

3.96 W/W

Energy Class (Cooling)

A+++

SCOP (Average)

4.7 W/W

Energy Class (Heating Average)

A++

SCOP (Warmer)

5.6 W/W

Energy Class (Warmer)

A+++

SCOP (Colder)

3.9 W/W

Energy Class (Colder)

Annual Cooling Energy Consumption

289 kWh/year

Annual Heating Energy Consumption (Average)

1,579 kWh/year

Moisture Removal

2.0 L/h

Electrical Data

Power Supply

220–240 V~ / 50 Hz / 1 Phase

Voltage Range

165–265 V

Cooling Power Consumption

1,900 W (410–2,800 W)

Heating Power Consumption

1,795 W (420–3,000 W)

Cooling Operating Current

8.5 A (2.3–15.5 A)

Heating Operating Current

8.2 A (2.3–15.5 A)

Connecting Wiring

4 × 0.75 mm²

Power Cord Wiring

3 × 2.5 mm²

Noise Levels

Indoor Sound Power (S/H/M/L/Mute)

60 / 54 / 47 / 40 / 36 dB(A)

Indoor Sound Pressure (S/H/M/L/Mute)

50 / 44 / 37 / 30 / 26 dB(A)

Outdoor Sound Power

68 dB(A)

Outdoor Sound Pressure

58 dB(A)

Refrigerating System

Refrigerant Type

R32

Refrigerant Charge

1.27 kg

GWP

675

CO₂ Equivalent

0.858 tonnes

Compressor Type

Rotary Inverter

Expansion Device

Electronic Expansion Valve

Fan System

Indoor Fan Type

Outdoor Fan Type

Indoor Air Circulation (Cooling/Heating)

1,100 / 1,150 m³/h

Outdoor Air Circulation

4,000 m³/h

Operating Temperatures

Indoor Ambient (Cooling)

17°C – 32°C

Indoor Ambient (Heating)

0°C – 30°C

Outdoor Ambient (Cooling)

-15°C – 53°C

Outdoor Ambient (Heating)

-25°C – 30°C

Piping & Connections

Gas Pipe Diameter

1/2"

Liquid Pipe Diameter

1/4"

Standard Piping Length

5 m

Max. Piping Length

25 m

Max. Height Difference

10 m

Extra Refrigerant Charge

25 g/m (beyond standard length)

Dimensions & Weight

Indoor Unit (W × H × D)

1,096 × 333 × 222 mm

Outdoor Unit (W × H × D)

978 × 803 × 421 mm

Indoor Net Weight

14.2 kg

Outdoor Net Weight

45 kg

Indoor Packing (W × H × D)

1,165 × 405 × 295 mm

Outdoor Packing (W × H × D)

1,022 × 835 × 480 mm

Indoor Gross Weight

17.2 kg

Outdoor Gross Weight

48 kg

Specs may vary by region. Always verify with official manufacturer documentation.
