GaN Technology: Higher Power, Smaller Size
Modern GaN components deliver high power in a smaller body, with less heat and better energy efficiency than ordinary chargers.
Swissten 22071610
Swissten 22071610

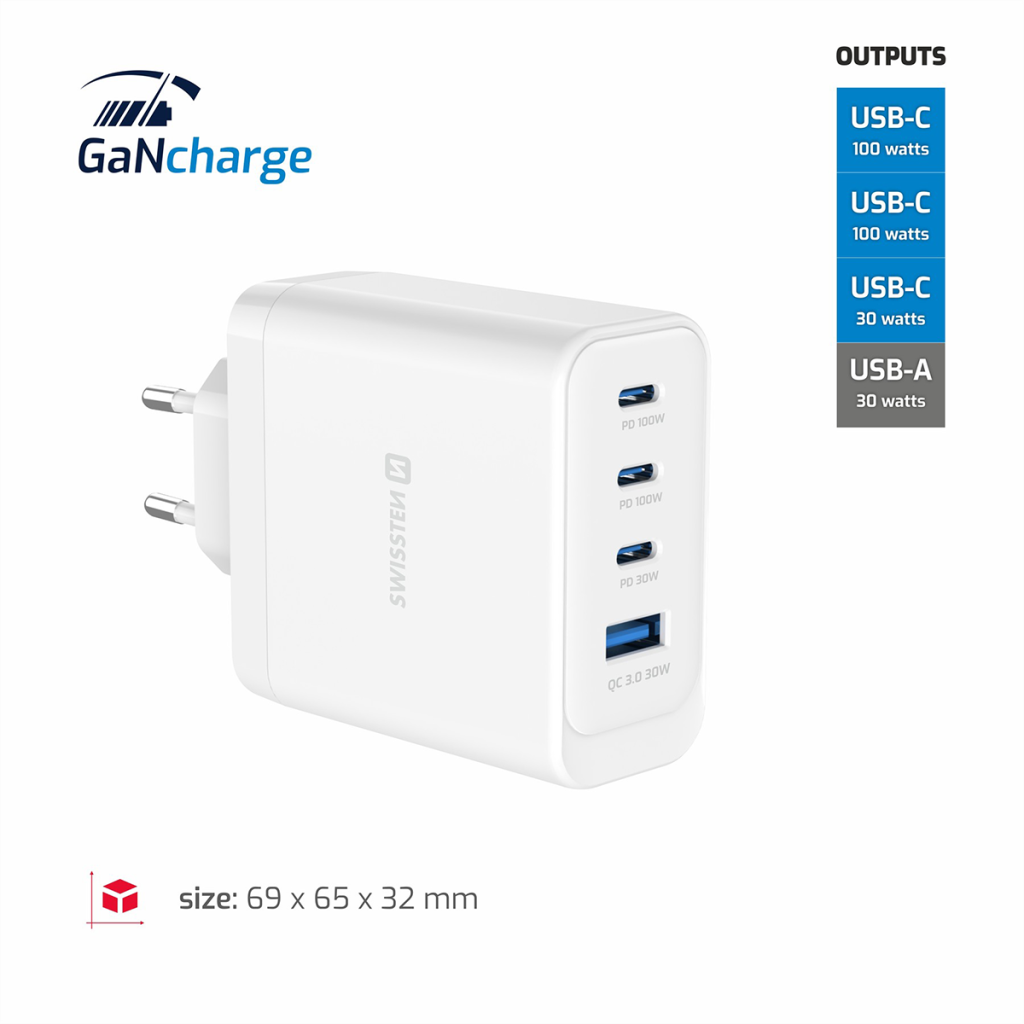

Core GaN Wall Charger
Max Output: 100 W (single USB-C port), 95 W combined
Ports: 3 x USB-C + 1 x USB-A
Technology: GaN
Charging Standards: PD 3.0, QC 3.0, PPS, AVS
Colour: White
| Brand | Swissten |
| Price | €59.00 |
No description found for this product
At a Glance
100 W
Max Single-Port Output
95 W
Max Combined Output
3 + 1
USB-C + USB-A Ports
PD 3.0
Power Delivery
PPS / AVS
Supported
GaN
Technology
Charge Up to 4 Devices at Once
Three USB-C ports and one USB-A port let you charge a laptop, phone and other devices at the same time without losing power.
USB-C Power Delivery up to 100 W
The main USB-C ports provide enough power even for demanding devices such as work laptops or powerful tablets.
Intelligent Power Management
The charger automatically recognises the needs of the connected devices and shares the power between them, so charging is as fast and as safe as possible.
Specifications
Tap a section to expand or collapse.
Basic Information
Brand
Swissten
Model
Core GaN Travel Charger
Article number
22071610
EAN code
8595217494695
Product type
GaN wall charger, 4 ports
Colour
White
Ports
USB-C ports
3 (USB-C1, USB-C2, USB-C3)
USB-A ports
1 (QC 3.0)
USB-C1 and USB-C2 output
PD 3.0, up to 100 W (5 V 3 A, 9 V 3 A, 12 V 3 A, 15 V 3 A, 20 V 5 A)
USB-C3 output
PD 3.0, up to 30 W (5 V 3 A, 9 V 3 A, 12 V 2.5 A, 15 V 2 A, 20 V 1.5 A)
USB-A output
QC 3.0, up to 30 W (5 V 3 A, 9 V 2 A, 12 V 1.5 A, 20 V 1.5 A)
Charging Standards
Power Delivery
PD 3.0
Quick Charge
QC 3.0 (USB-A)
PPS, USB-C1 or USB-C2
3.3-10 V DC 4.5 A, up to 45 W
PPS, USB-C3
3.3-10 V DC 3 A, up to 30 W
AVS, USB-C1
9-20 V DC 5 A, up to 100 W
Combined Outputs
USB-C1 + USB-C2
65 W + 30 W (max 95 W)
USB-C1 or USB-C2 + USB-C3
65 W + 30 W (max 95 W)
USB-C1 + USB-C2 + USB-C3
45 W + 30 W + 20 W (max 95 W)
USB-C1 + USB-C2 + USB-A
45 W + 30 W + 18 W (max 93 W)
USB-C3 + USB-A
Max 20 W together
USB-C1 + USB-C2 + (USB-C3 + USB-A)
45 W + 30 W + 20 W (max 95 W together)
Electrical and Safety
Input
100-240 V AC, 2.2 A, 50/60 Hz
Charging efficiency
91%
Protections
Overcurrent, overvoltage, overheating, overload, undervoltage and short circuit
Specs may vary by region. Always verify with official manufacturer documentation.
