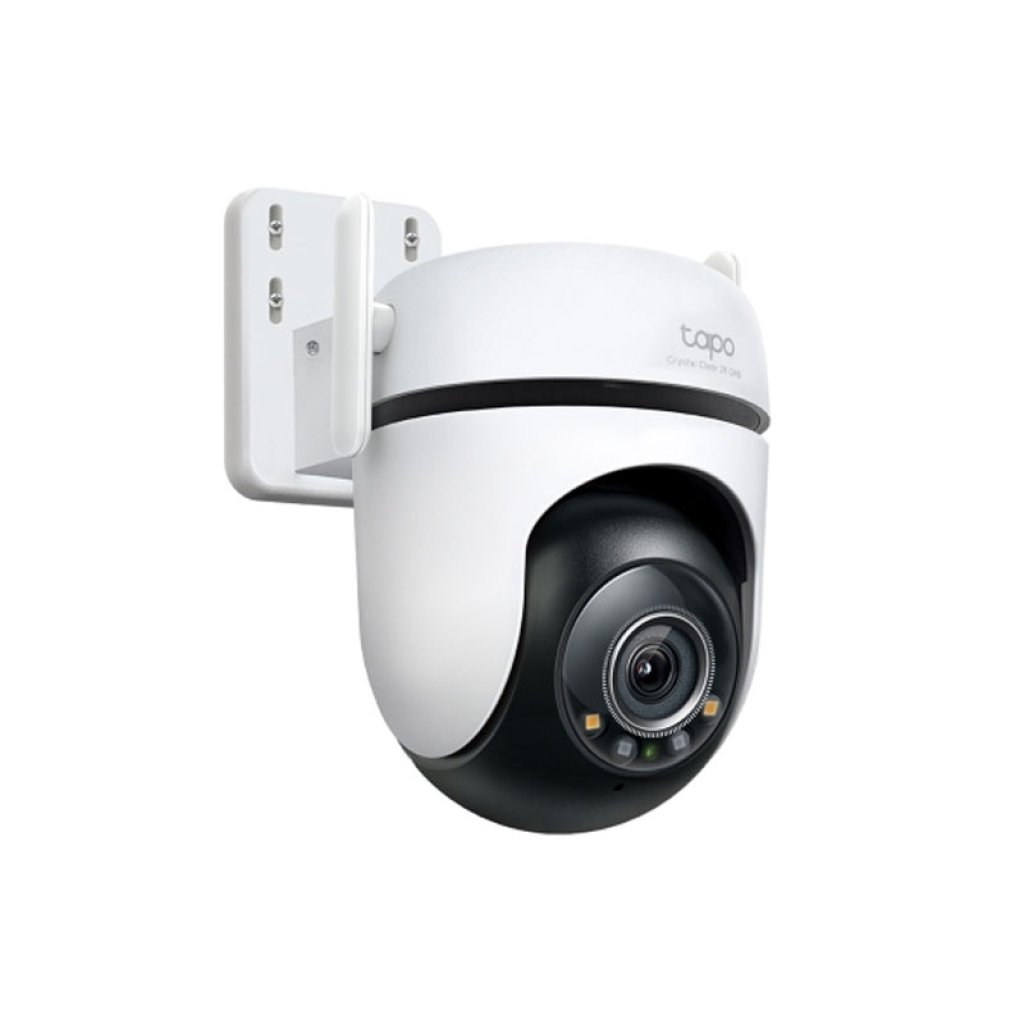

TP-Link TAPO C520WS
TP-Link TAPO C520WS
Wi-Fi Security Camera
| Brand | TP-LINK |
| Price | €69.90 |
No description found for this product
At a Glance
2K QHD 4MP
Resolution
340° / 90°
Pan / Tilt Range
IP66
Weatherproofing
29.9 m
Night Vision
Wi-Fi 6
2.4 GHz Wi-Fi (802.11ax)
512 GB
Max. microSD
Specifications
Tap a section to expand or collapse.
Basic Information
Brand
TP-Link Tapo
Model
Tapo C520WS
Type
Outdoor pan/tilt security Wi-Fi camera
Connection
Wi-Fi or Ethernet
Mounting
Ceiling, wall or pole mounted (pole mounting loops not included)
Camera
Image Sensor
1/3" progressive scan CMOS starlight sensor
Lens
3.2 mm focal length, F1.6 aperture
Field of View
112° diagonal, 95° horizontal, 53° vertical
Pan Range
340° mechanical (360° pan coverage)
Tilt Range
90° mechanical (140.7° tilt coverage)
Digital Zoom
12x
Night Vision
850 nm IR LED, up to 29.9 m (98 ft), with full-colour night vision
Lighting
2 x built-in spotlights
Image Enhancement
3DNR and WDR
Video and Audio
Maximum Resolution
2K QHD 4MP (2560 x 1440 px)
Frame Rate
15/20/25/30 fps (default 15 fps)
Video Compression
H.264
Audio
Built-in microphone and speaker, two-way audio with noise cancellation
Siren
93 dB at 10 cm
Detection and Alerts
AI Detection
Motion, person, pet, vehicle, line-crossing and tamper detection
Activity Zones
Yes
Notifications
System notification, with snapshot using Tapo Care
On-Device Machine Learning
Yes
Storage
Local Storage
microSD card up to 512 GB
Cloud Storage
Tapo Care cloud service (subscription required)
Connectivity and Security
Wi-Fi
IEEE 802.11b/g/n/ax, 2.4 GHz
Ethernet
1 x 10/100 Mbps RJ45 port
RTSP and ONVIF
Yes
Encryption
128-bit AES with SSL/TLS, WPA/WPA2-PSK
Smart Integration
Amazon Alexa and Google Assistant
App
Tapo app (iOS 9.0 or higher, Android 4.4 or higher)
Power
Power Source
9 V DC power adapter
Adapter Input
100-240 V, 50/60 Hz
Adapter Output
9 V, 0.85 A DC
Environment
Weather Resistance
IP66
Operating Temperature
-30 to 60 °C
Operating Humidity
10 % to 90 % RH, non-condensing
Certifications
CE, FCC, RCM
Dimensions
Dimensions (W x D x H)
123.8 x 123 x 90 mm
What's in the Box
Included
Tapo C520WS camera, power adapter, mounting bracket, mounting anchors and screws, bracket screws, mounting template, waterproof seal, waterproof cable attachments and a quick start guide
Specs may vary by region. Always verify with official manufacturer documentation.
